- 462 pin Socket A supports AMD® Athlon (K7) processors
- Full series of Athlon XP/Athlon/Duron processors
- Supports 100/133 MHz frontside bus (FSB)
CHIPSET
- SiS® 745 System Chipset
- Super I/O and LPC - ITE8705F
- System Hardware Monitor: Built-in ITE8705F
- AC97 Audio Codec
MEMORY
- Three 184-pin DDR DIMM sockets to support
- Three 2.5V DDR SDRAM (DDR266/DDR200) or
- Two 2.5V DDR SDRAM (DDR333)
- Maximum: 3GB
SYSTEM BIOS
- Award 2Mb Flash EEPROM
- Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
- Full Support for ACPI revision 1.0 specification
I/O INTERFACE
- Supports Plug and Play function
- PS/2 keyboard and PS/2 mouse connectors
- Two USB Ports
- One - EPP/ECP mode parallel port
- Two - 16550 high-speed serial I/O ports
- Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port)
- Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 33/66/100)
- Supports 360K~2.88M Byte, 3 Mode FDDs or LS120
- ATX Power Supply Connector
- ports, Headers and Others:
- IrDA Cable header
- Four additional USB ports (USB2/3 or LUSB1/2)
- Two CD-In headers
- Front Panel MIC/Line-Out header
- HDD LED, ACPI MSG LED, Reset Switch, Power Switch headers
- CPU and Case Fan headers
- LAN Card Wake Up/Internal Modem Ring Wake Up headers
RTC & BATTERY
- SiS® 745 included 256 bytes of CMOS SRAM
- With CMOS SRAM hardware clear jumper
EXPANSION SLOTS
- 5 PCI slots, 1 4X AGP slot, 1 CNR slot
FORM FACTOR
- ATX (304mm*220mm), 4 Layers

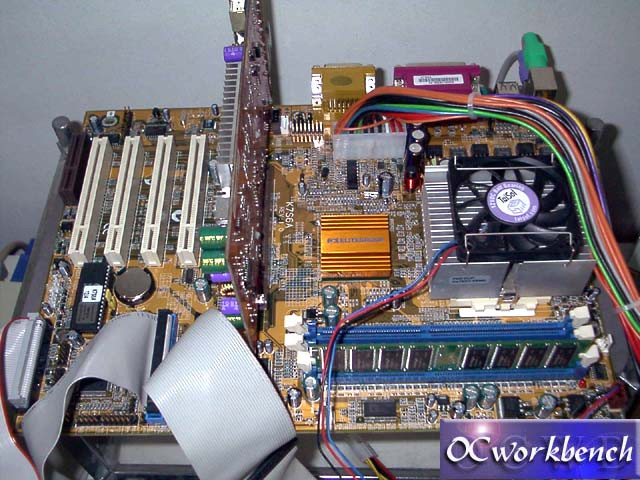

ECS a jelek szerint megint megcsinálta. Egy olcsó alaplap kiváló teljesítménnyel és most a tuning opciókon is javítottak. Biztos kishazánkban is nagysikere lesz a lapnak.
Már alig várjuk tesztlaborunkban...
